Dante®-enabled coaxial in-ceiling speaker incorporating one 5.25 inch (134 mm) polypropylene woofer with rubber surround and one 0.75 inch (19 mm) silk dome tweeter. BroadBeam Ring™ technology and a tuned port on the baffle provide smooth off-axis performance, mid-range clarity and bass response to 65 Hz (-10 dB). Low latency digital audio, power, and control are delivered to the speaker...
$1,071.00each
Sign in to see your dealer price
Availability Store hours
- Plainview — Out of stock Transfer from other store: 1–2 days
- Southampton — Out of stock Transfer from other store: 1–2 days
Special order — ships in 5–7 business days
Questions about the PHA-IPD-CI52? DSG Technical Support can help with specs and system design.
Overview

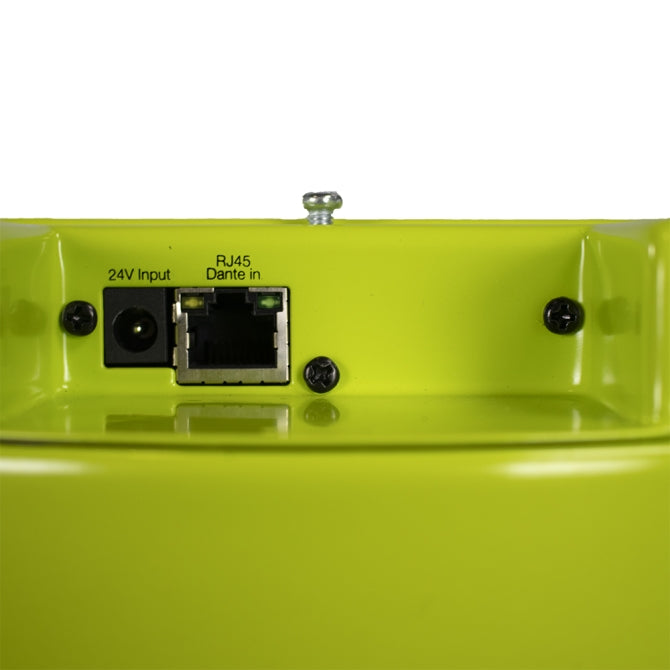

Dante®-enabled coaxial in-ceiling speaker incorporating one 5.25 inch (134 mm) polypropylene woofer with rubber surround and one 0.75 inch (19 mm) silk dome tweeter. BroadBeam Ring™ technology and a tuned port on the baffle provide smooth off-axis performance, mid-range clarity and bass response to 65 Hz (-10 dB). Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Mounting hardware is included and features SoundTube®'s SpeedWing™ constant-tension fixed-wing mounting system, which accommodates material thicknesses ranging from 0.035 in (0.9 mm) to 2.38 in (60.4mm). Color-coded tile bridge, UL listed conduit clamp and paint shield are included. Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)
Specifications0 specs
Documents{"one"=>"{{ count }} file", "other"=>"{{ count }} files"}
No documents for this product yet.
