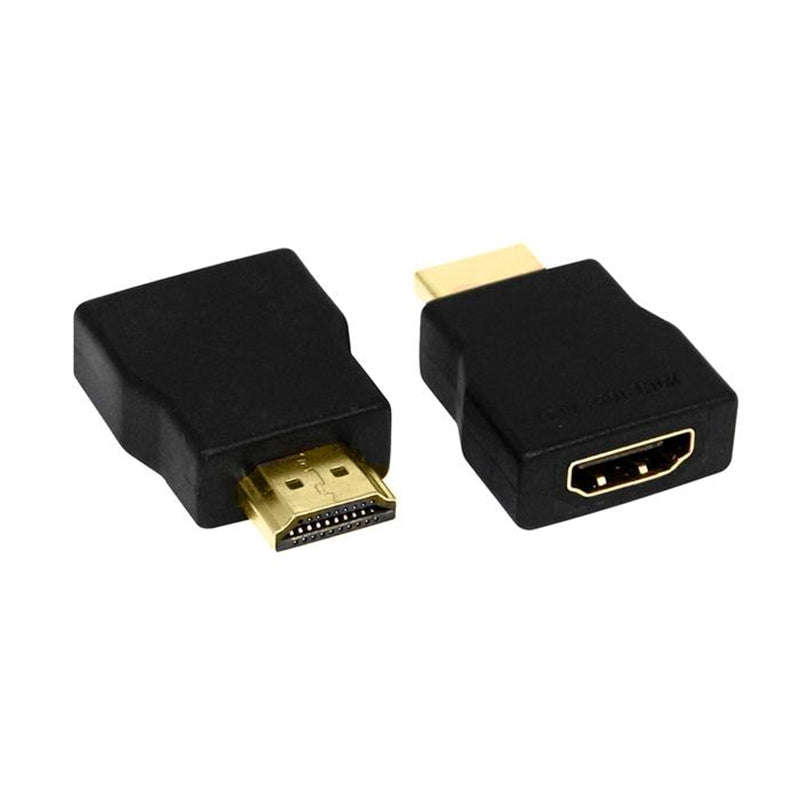

The HDSURGE HDMI Protector is a single-chip integrated ESD protection solution for HDMI 1.4 or HDMI 1.3 interface. This device offers 13 channels of ESD clamp circuits with flow-through pin mapping that matches HDMI connector high-speed lines. While providing ESD protection, it adds little to no additional distortion to the high-speed differential signals. The monolithic integrated circuit technology ensures that...
$27.00each
Sign in to see your dealer price
Availability Store hours
- Plainview — Out of stock Transfer from other store: 1–2 days
- Southampton — Out of stock Transfer from other store: 1–2 days
Special order — ships in 5–7 business days
Questions about the SMP-HDSURGE? DSG Technical Support can help with specs and system design.
Overview
The HDSURGE HDMI Protector is a single-chip integrated ESD protection solution for HDMI 1.4 or HDMI 1.3 interface. This device offers 13 channels of ESD clamp circuits with flow-through pin mapping that matches HDMI connector high-speed lines. While providing ESD protection, it adds little to no additional distortion to the high-speed differential signals. The monolithic integrated circuit technology ensures that there is excellent matching between the two-signal pair of the differential line (<0.05pF differential matching between TMDS lines). This is an advantage over discrete ESD clamp solutions where variations between two different ESD clamps may significantly degrade the differential signal quality.
Specifications0 specs
Documents{"one"=>"{{ count }} file", "other"=>"{{ count }} files"}
No documents for this product yet.
