The M88KT HDMI Matrix kit features eight HDMI inputs, 8 x 18gbps Scaling HDBaseT outputs (90m @ 4K RX devices included), and 8 Scaling HDMI outputs. The HDMI and HDBaseT outputs can scale independently of each other. The RX devices support ARC, RS232, 2-Way IR, and a two port Ethernet Switch. It provides true matrix routing for HDMI signals. It...
$12,000.00each
Sign in to see your dealer price
Availability Store hours
- Plainview — Out of stock Transfer from other store: 1–2 days
- Southampton — Out of stock Transfer from other store: 1–2 days
Special order — ships in 5–7 business days
Questions about the SMP-M88KT? DSG Technical Support can help with specs and system design.
Overview

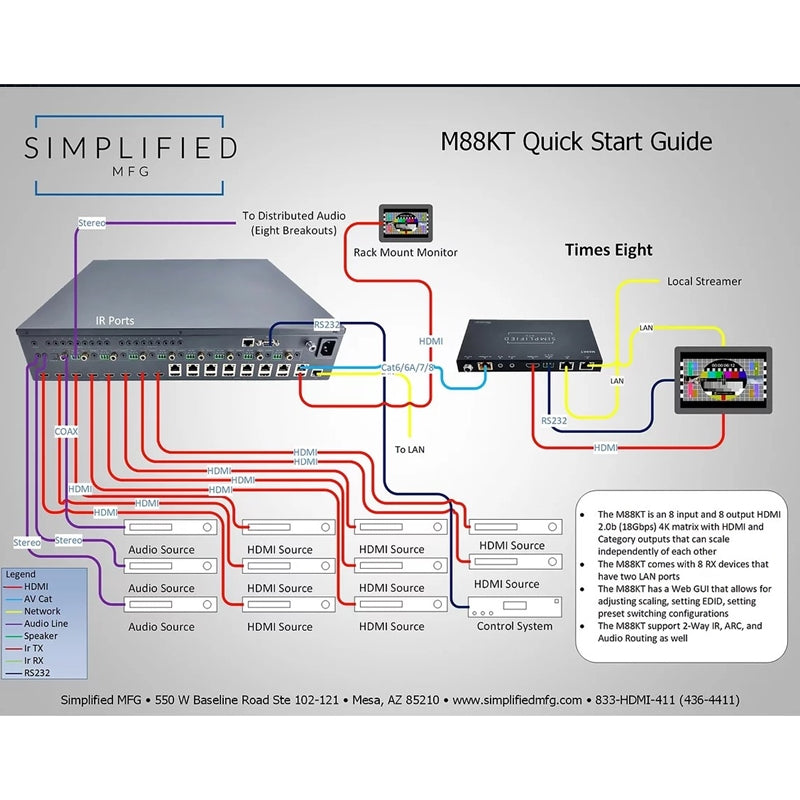

The M88KT HDMI Matrix kit features eight HDMI inputs, 8 x 18gbps Scaling HDBaseT outputs (90m @ 4K RX devices included), and 8 Scaling HDMI outputs. The HDMI and HDBaseT outputs can scale independently of each other. The RX devices support ARC, RS232, 2-Way IR, and a two port Ethernet Switch. It provides true matrix routing for HDMI signals. It supports transmission of video (resolutions up to 2160p@60Hz Ultra HD 4:4:4) and supports high resolution audio formats such as LPCM7.1, Dolby TrueHD, Dolby Digital Plus, Atmos and DTS-HD Master Audio. The M88KT will also pass HDR8/10/10+ High Dynamic Range information as well as Dolby Vision. Each output can be set to scale independently of the other. Audio can be assigned and routed independently as well.
Specifications0 specs
Documents{"one"=>"{{ count }} file", "other"=>"{{ count }} files"}
No documents for this product yet.
