One 10 inch polypropylene cone with a butyl rubber surround on a reinforced ABS baffle. High output and maximum efficiency with an accentuated 70 Hz peak to maximize listener's low-frequency experience. Extra-large SoundTube-specific 12.9 liter steel deep can for quality bass response. Rapid-installation, blind-mount, fixed-wing mounting mechanism with constant-tension design affixing to ceiling thicknesses ranging from 0.25 inch (6.4 mm)...
$850.00each
Sign in to see your dealer price
Availability Store hours
- Plainview — Out of stock Transfer from other store: 1–2 days
- Southampton — Out of stock Transfer from other store: 1–2 days
Special order — ships in 5–7 business days
Questions about the SND-CM1001D-T-WH? DSG Technical Support can help with specs and system design.
Overview

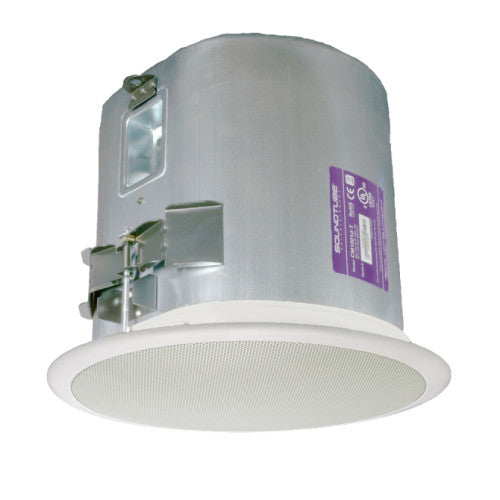

One 10 inch polypropylene cone with a butyl rubber surround on a reinforced ABS baffle. High output and maximum efficiency with an accentuated 70 Hz peak to maximize listener's low-frequency experience. Extra-large SoundTube-specific 12.9 liter steel deep can for quality bass response. Rapid-installation, blind-mount, fixed-wing mounting mechanism with constant-tension design affixing to ceiling thicknesses ranging from 0.25 inch (6.4 mm) to 1.91 inch (48.5 mm). Easy-access five-position tap switch for 25-, 70.7-, 100-volt and transformer bypass position. Steel grille with protective powder-coated finish for lasting durability plus a tool-free strap for easy installation. Baffle-mounted, flared and tuned port for maximum efficiency and frequency response. UL 1480 (UEAY) and 2043, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved.
Included accessories: Grille, UL-rated cover plate, four-pin Euroblock, paint shield and restraint cable, and choose between a color-coded (purple) tile bridge or a pre-construction bracket.
Specifications0 specs
Documents{"one"=>"{{ count }} file", "other"=>"{{ count }} files"}
No documents for this product yet.
