VigilLink
VIG-VLEX-HT3070CU
MPN

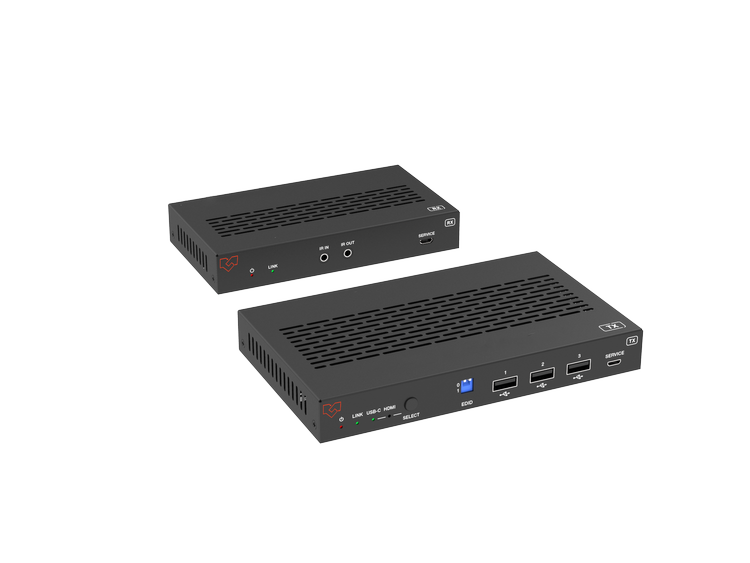

DSG SKU HDBaseT 3.0 4K@60Hz 4:4:4 USB-C/HDMI 2.0 Extender with USB 70m 18 Gbps
This 18Gbps HDBaseT 3.0 Extender can extend uncompressed HDMI/USB-C signals, bi-directional IR, RS-232, and USB 2.0 signals up to 230ft/70m (4K30/ 1080P) or 131ft /40m (4K60) via a single CAT6A/7 cable. Video resolution is up to 4K2K@60Hz YUV 4:4:4. The transmitter features 1x HDMI input, 1x USB-C input (60W charging), 1x USB Host, and 3x USB Device ports. The receiver...
$1,598.00each
Sign in to see your dealer price
Availability Store hours
- Plainview — Out of stock Transfer from other store: 1–2 days
- Southampton — Out of stock Transfer from other store: 1–2 days
Special order — ships in 5–7 business days
Questions about the VIG-VLEX-HT3070CU? DSG Technical Support can help with specs and system design.
Overview

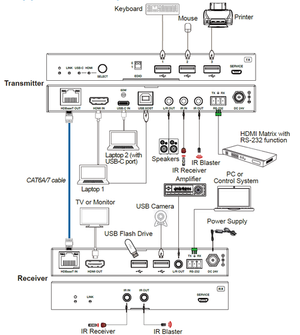

This 18Gbps HDBaseT 3.0 Extender can extend uncompressed HDMI/USB-C signals, bi-directional IR, RS-232, and USB 2.0 signals up to 230ft/70m (4K30/ 1080P) or 131ft /40m (4K60) via a single CAT6A/7 cable. Video resolution is up to 4K2K@60Hz YUV 4:4:4. The transmitter features 1x HDMI input, 1x USB-C input (60W charging), 1x USB Host, and 3x USB Device ports. The receiver features 1x HDMI output and 2x USB Device ports. Both transmitter and receiver support 3.5mm analog audio de-embedding, EDID management, bi-directional IR, and RS-232 signal pass-through. This product supports a bi-directional 24V POC function.
The Extender offers the most convenient solution for video extension via a single CAT cable with long-distance capability, and it is perfect for home and commercial applications.
Specifications0 specs
Documents{"one"=>"{{ count }} file", "other"=>"{{ count }} files"}
No documents for this product yet.
